WPCS Kits For Pipes From 3mm to 9mm Thickness
Rated 3.5/5 based on 11 customer reviews

WPCS Kits For Pipes From 3mm to 9mm Thickness

Available: In Stock
  • Product SKU: Product 13- 00

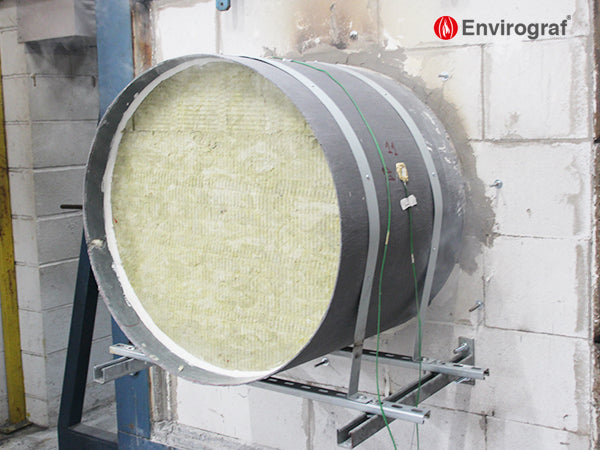

    WPCS kits have been created to provide fire protection to PVC, UPVC and polypropylene pipes in sizes from 400mm to 900mm diameter. The kits include a WPCS collar, two layers of fibreglass, adhesive whit hardener, and grey intumescent coating. See new data sheet for more details.

    – Provides fire protection on pipes from 400mm to 900mm

    – Can be quickly fixed to the risk side of surfaces in both new and retrofit applications

    – Adjustable brackets allow for fitting in hard-to-access areas

    Prior to fixing, please ensure:
    ? Access for fitting is available
    ? Correct area of risk is assessed (double-risk areas may require two collars
    ? Correct size of collar appropriate to the pipe or service being protected
    (See also Envirograf® Product 110 for hollow wall fixing).
    The product must be installed correctly. Fixing lugs are already fitted to WPCS
    collars. They can be fixed to solid structures with raw plugs with screws. It is
    recommended that you pump a spot of Envirograf product 58 (intumescent Mastic)
    into the previously drilled hole. For hollow plasterboard walls, fix with screws if there
    are timber noggins to fix to, otherwise use steel toggle fixings. If WPCS are to be
    fitted into an area where no noggins or blockwork to attach to, the lugs can be
    re-attached to another part of the WPCS by drilling 1.5mm holes into the side of the
    collar and screw into collar. WPCS’s MUST be securely fixed.

    REF                        DEPTH

    WPCS400K                           100mm

    WPCS450K                           100mm

    WPCS500K                           150mm

    WPCS550K                           150mm

    WPCS600K                           200mm

    WPCS650K                           200mm

    WPCS800K                           200mm

    WPCS850K                           200mm

    WPCS900K                           200mm

    WPCS950K                           200mm
